Solenoid Valve Electromagnetic Valve (4V110/210/310/420) Solenoid Valve

Short Description:

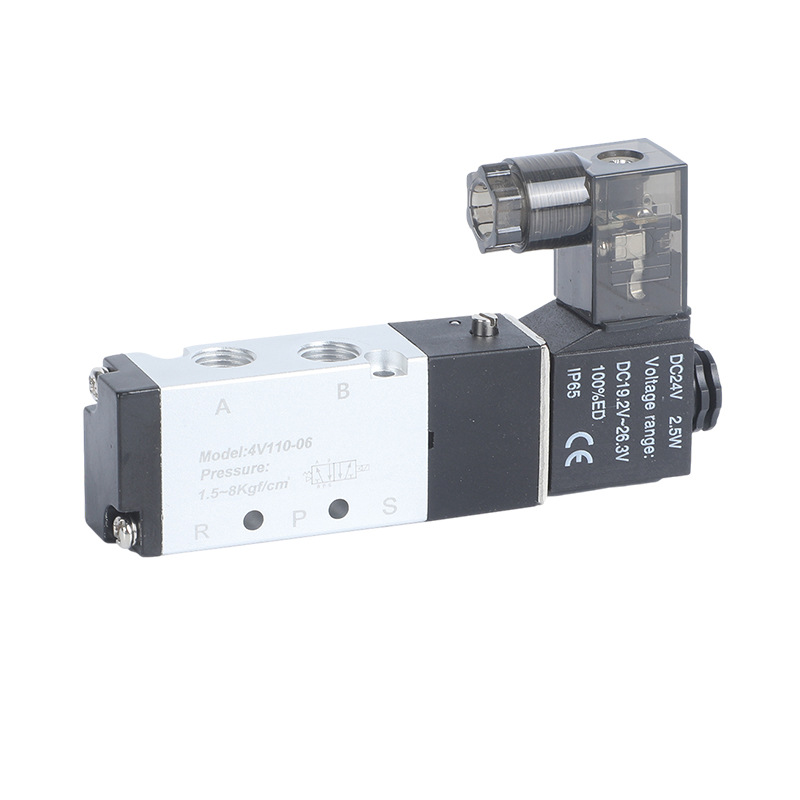

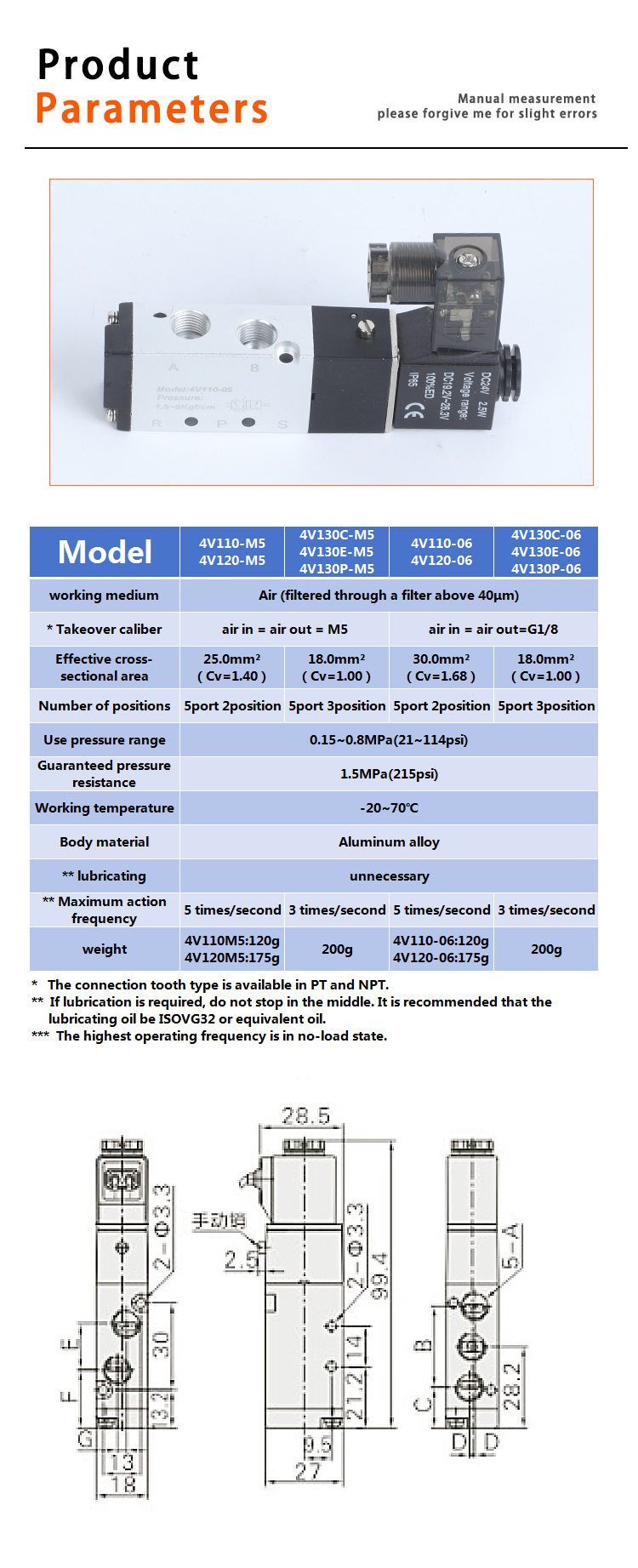

4V110 solenoid valve

Diameter of takeover: generally G1/8.

Working medium: corrosive media such as air, water, gas, oil, etc.

Working method: Two in five communication.

Effective cross-sectional area: 12.00mm ² (CV=0.67).

Operating pressure: 0.15-1.2MPa.

Pressure resistance: 1.5MPa.

Working temperature: generally -20 ºC -70 ºC.

Action frequency: up to 5Hz.

Standard voltage: available in multiple options including DC12V, DC24V, AC24V, AC110V, AC220V, AC380V, etc


Product Detail

Product Tags

solenoid,solenoid valve,Electromagnetic Valve, 4V110 solenoid,solenoid valve,Electromagnetic Valve, 4V110 solenoid,solenoid valve,Electromagnetic Valve, 4V110
