Solenoid Valve Electromagnetic Valve (4V110-08)

Short Description:

Structural features: The leading mode can be selected from both external and internal options; Sliding column structure, good sealing and sensitive response; The inner hole is processed with special technology, with low friction resistance, low starting air pressure, and long service life; Equipped with a manual device for easy installation and debugging.

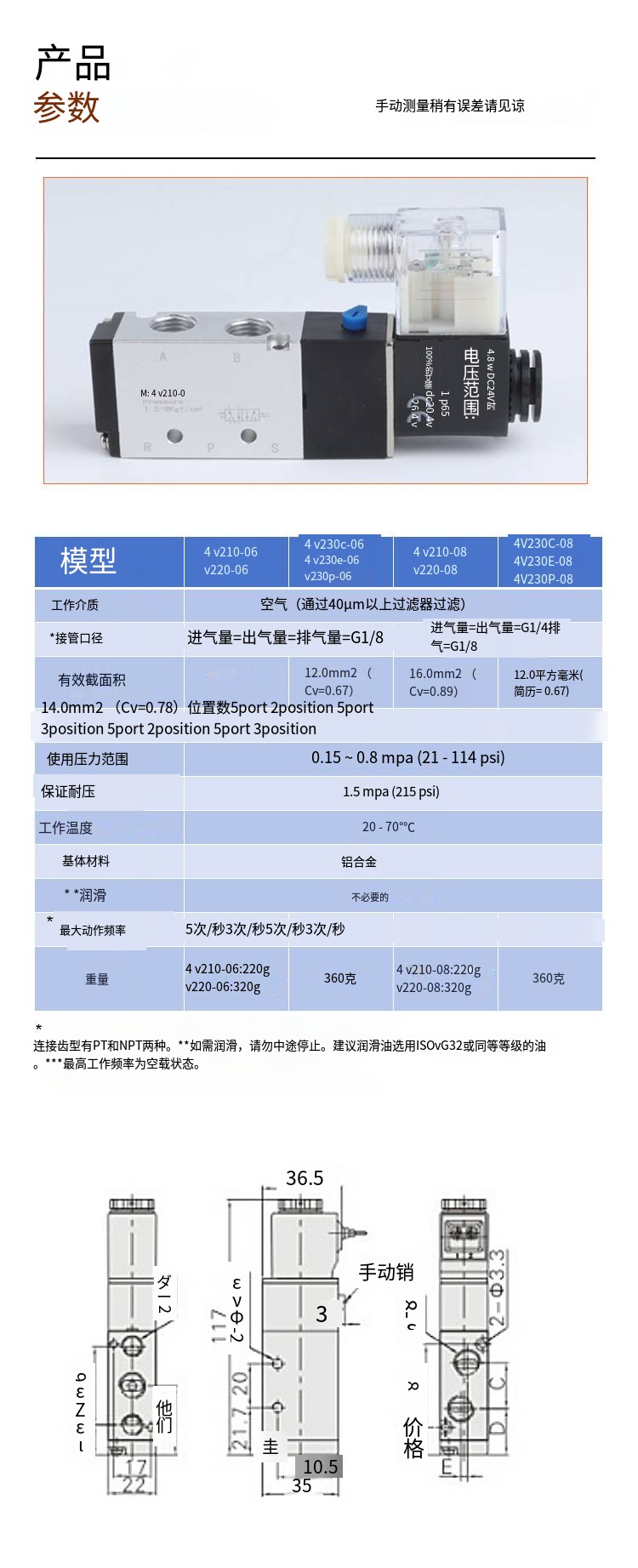

Specification parameters: The diameter of the connecting pipe is generally G1/4.

Functional features: There are multiple standard voltage levels to choose from, which can be integrated with the base valve group to save installation space. The dual head two position solenoid valve has memory function.

Working conditions: The working medium is generally air that has undergone oil and water removal treatment; The working pressure is generally 0.15-1.2MPa;

The working temperature is usually between -20 ºC and+60 ºC; The action frequency can reach 5Hz.


Product Detail

Product Tags

solenoid valve,Electromagnetic Valve, 4V210 solenoid valve,Electromagnetic Valve, 4V210 solenoid valve,Electromagnetic Valve, 4V210
