Solenoid Valve Electromagnetic Valve (4V110/210/310/420)

Short Description:

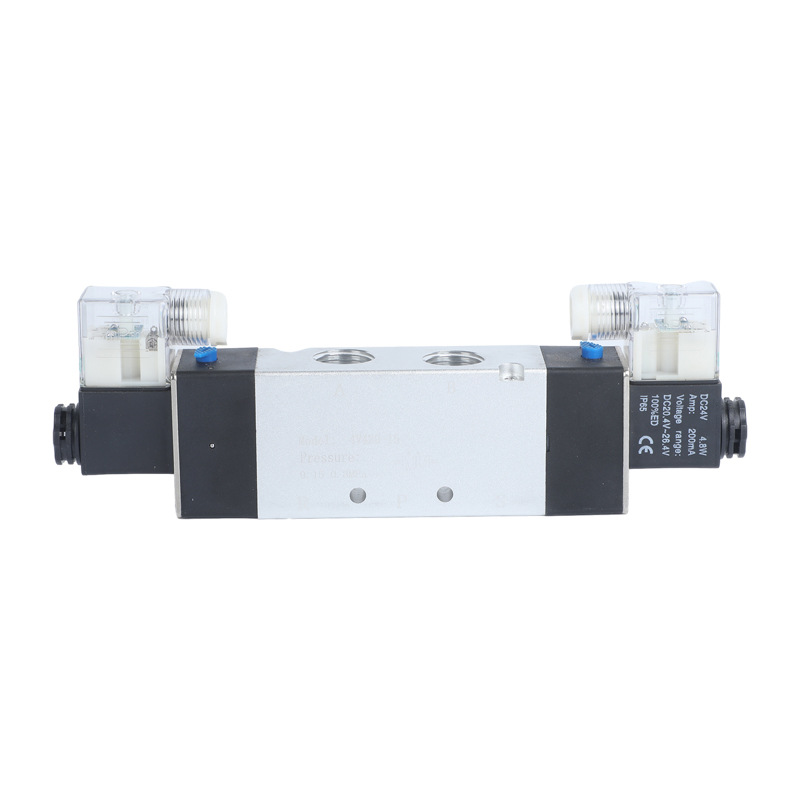

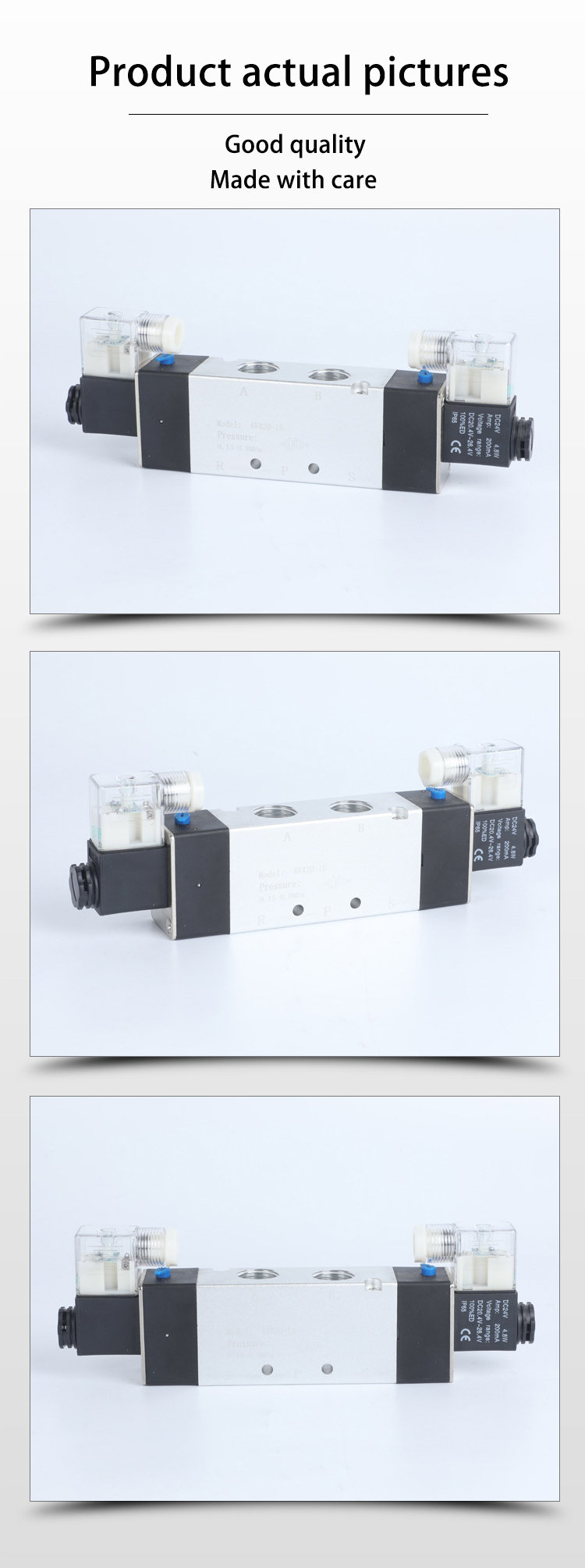

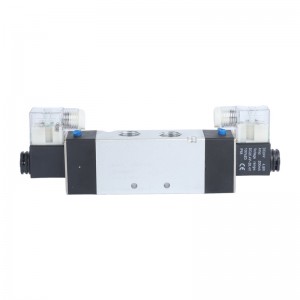

4V420 solenoid valve

Structural features: The leading mode can be selected from both external and internal options; Sliding column structure, good sealing and sensitive response; The inner hole is processed using special techniques, resulting in low friction resistance, low starting air pressure, and long service life.

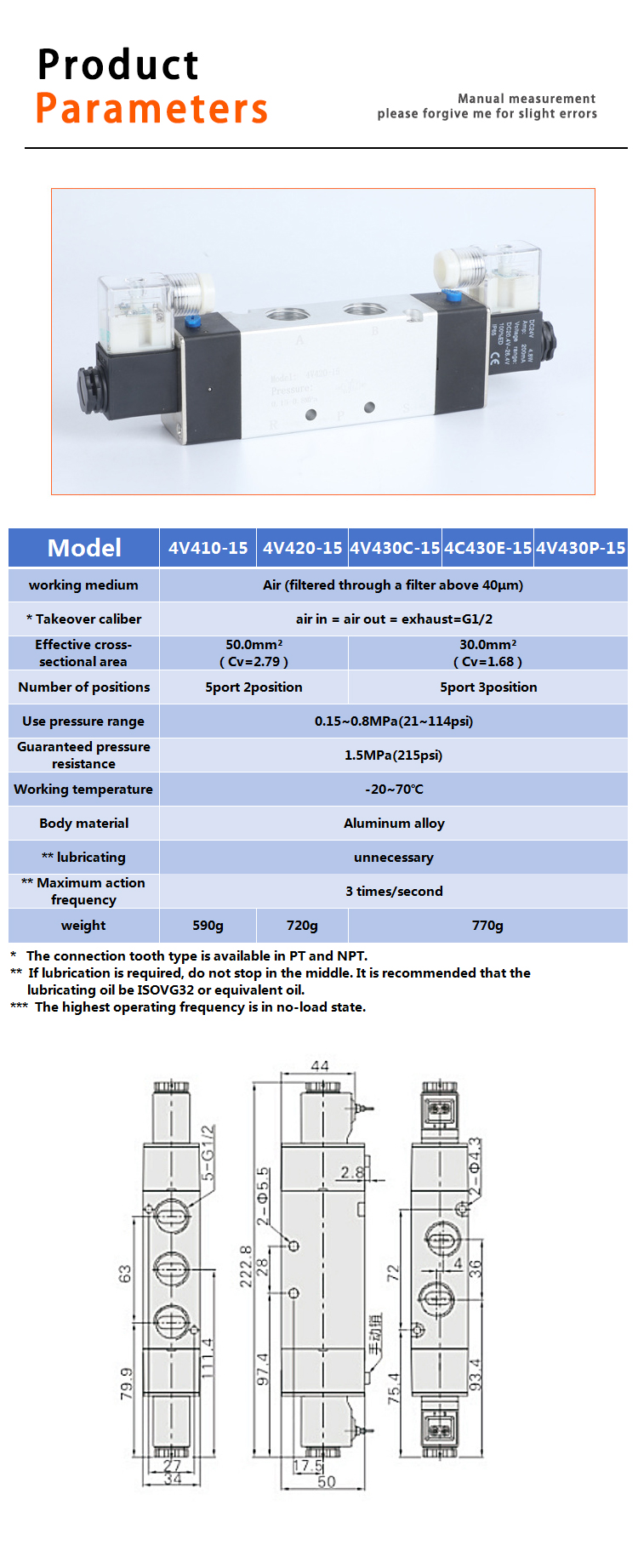

Specification parameters: The diameter of the connecting pipe is G1/2.

Functional features: The three position solenoid valve has three central functions to choose from and can be integrated for installation, making it an ideal directional control component.

Working conditions: The working pressure ranges from 0.1MPa to 0.7MPa; Capable of withstanding a gas source pressure of 0.8MPa; When the operating voltage of the solenoid valve is 85% of the rated voltage under the nominal gas source pressure state, the opening response time is less than 0.03s


Product Detail

Product Tags

Solenoid Valve, Electromagnetic Valve,4V420 Solenoid Valve, Electromagnetic Valve,4V420 Solenoid Valve, Electromagnetic Valve,4V420
