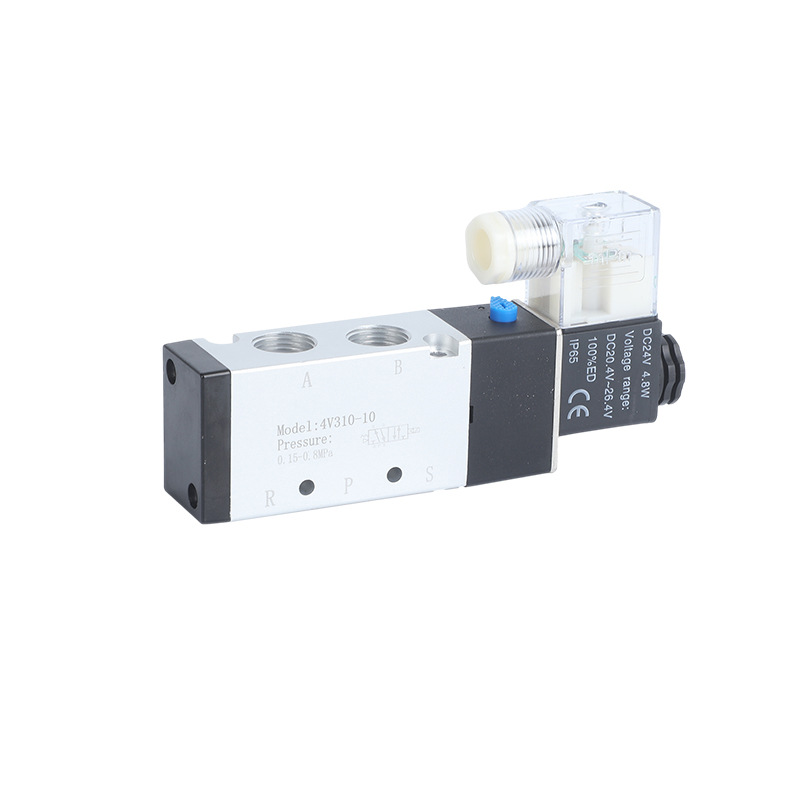

Structural features: The leading mode can be selected from both external and internal options; Sliding column structure, electromagnetic or manual operation, press and rotate the manual operation button to achieve manual state locking.

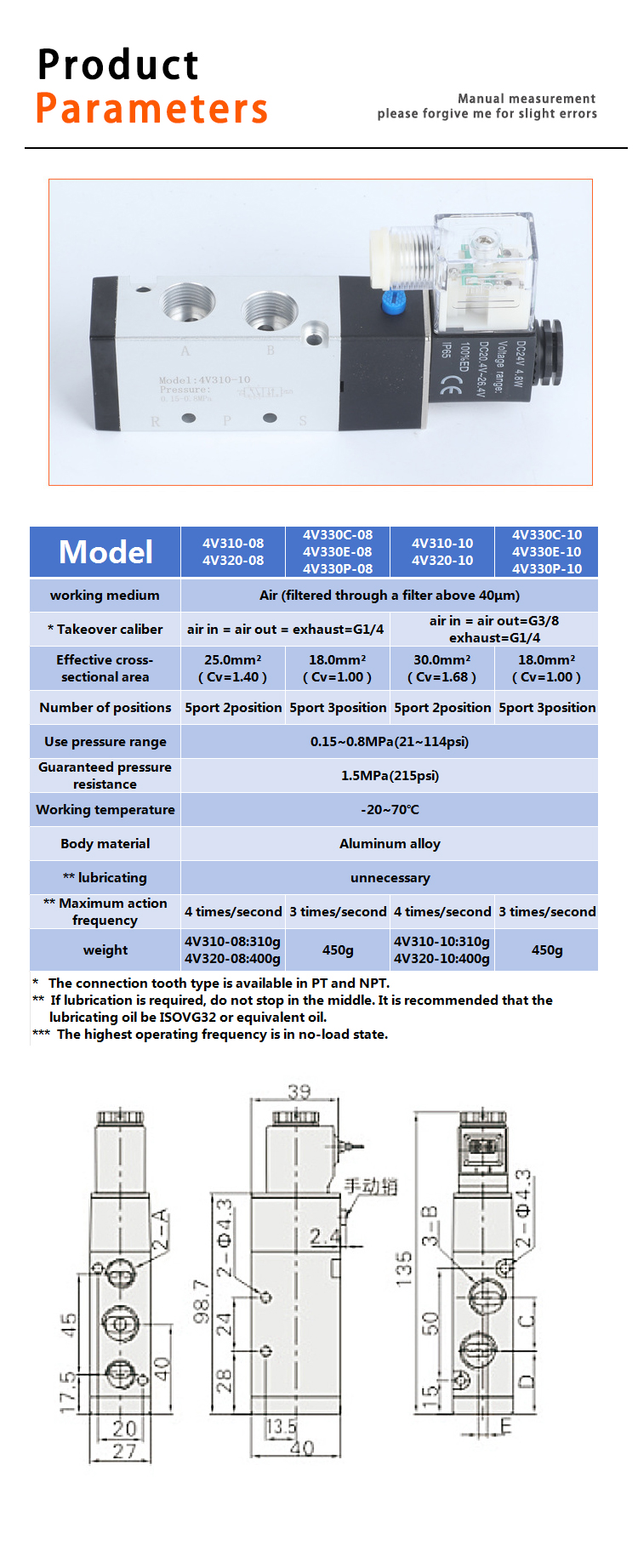

Specification parameters: The diameter of the connecting pipe is usually G3/8
The effective cross-sectional area is generally 30.00mm ² (CV=1.68).
Functional features: Two position five way solenoid valve with double acting actuator, two position three-way solenoid valve with single acting actuator, available in basic type (IP67) and explosion-proof type, with explosion-proof level of ExdIIBT4.
Working conditions: The working medium is filtered (50 microns), lubricated or non lubricated compressed air
The working pressure is generally 0.15-1.2MPa; Pressure resistance of 1.5MPa; Environmental temperature -20 ºC -+60 ºC, explosion-proof type -15 ºC -+50 ºC; Medium temperature -20 ºC -+80 ºC, explosion-proof type -15 ºC -+50 ºC.
