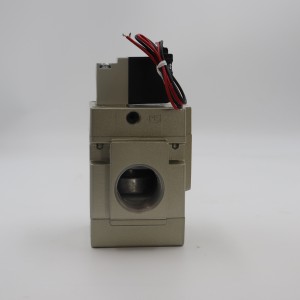

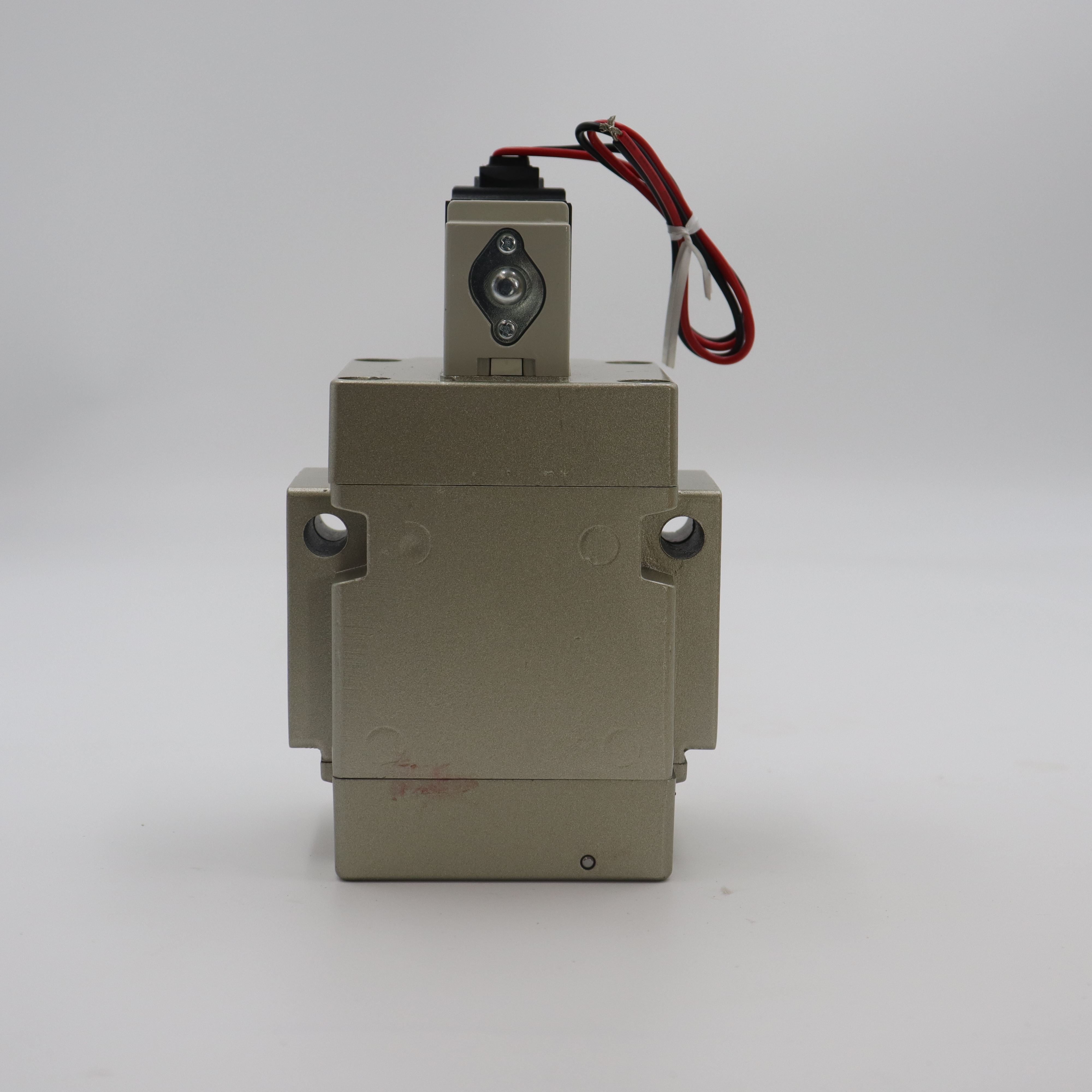

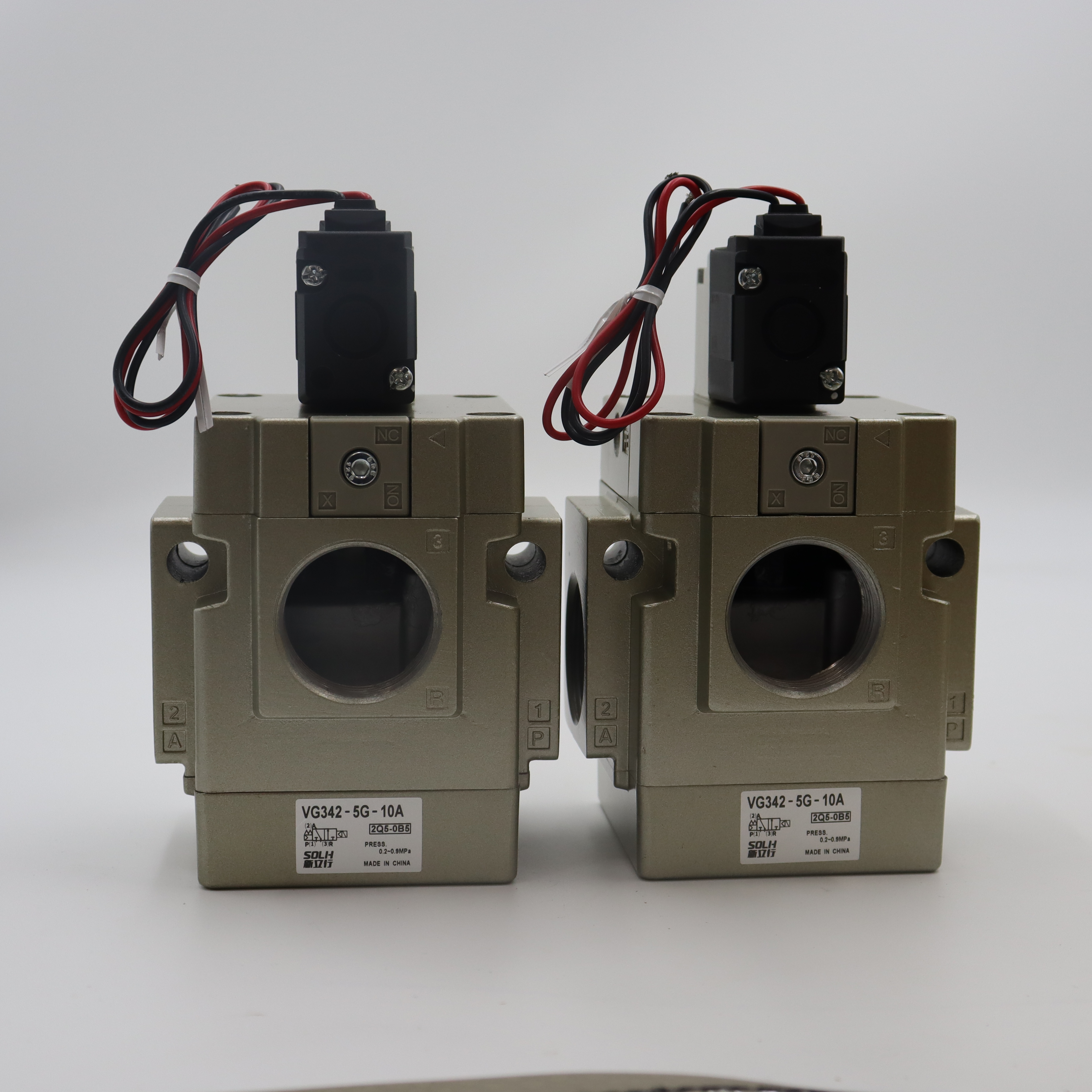

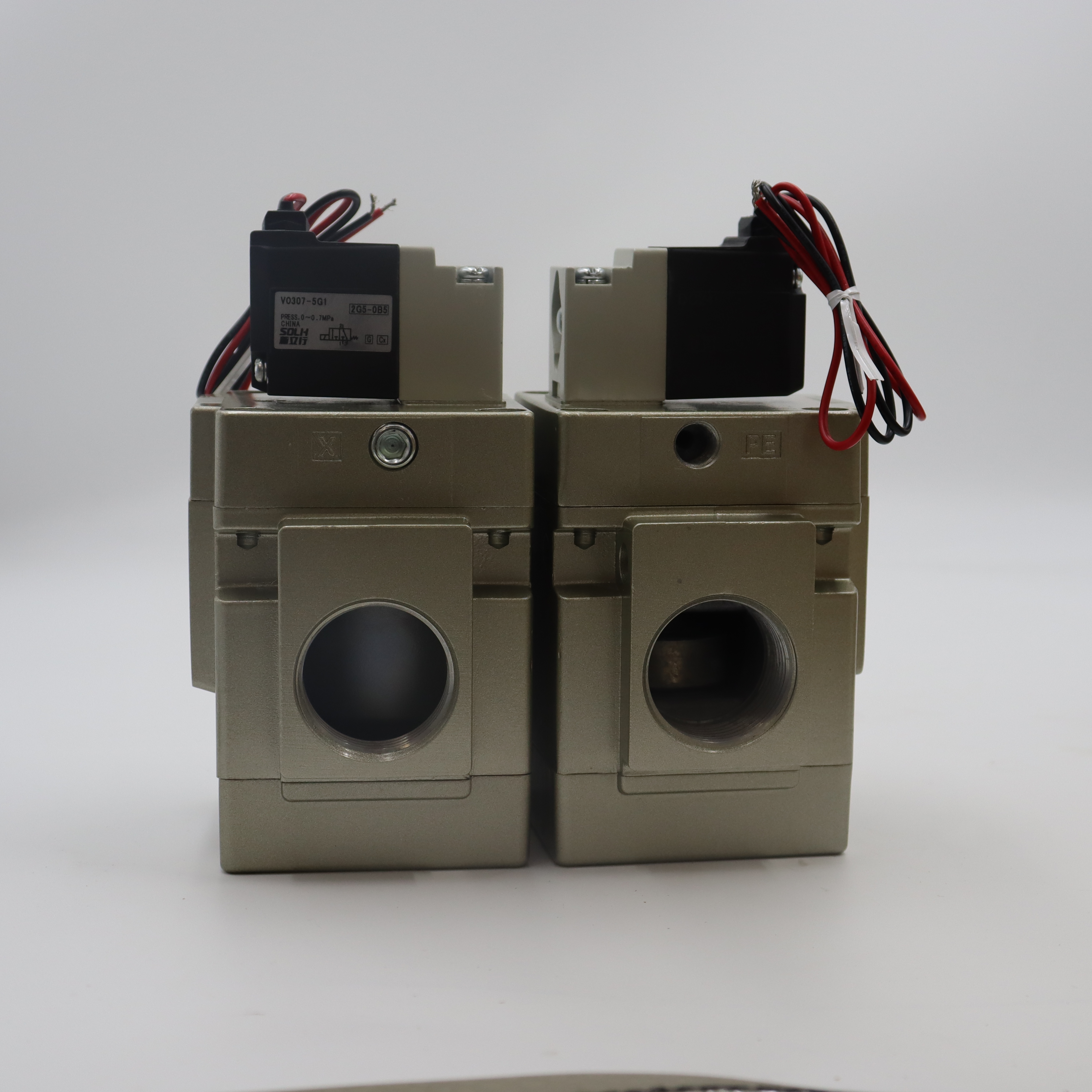

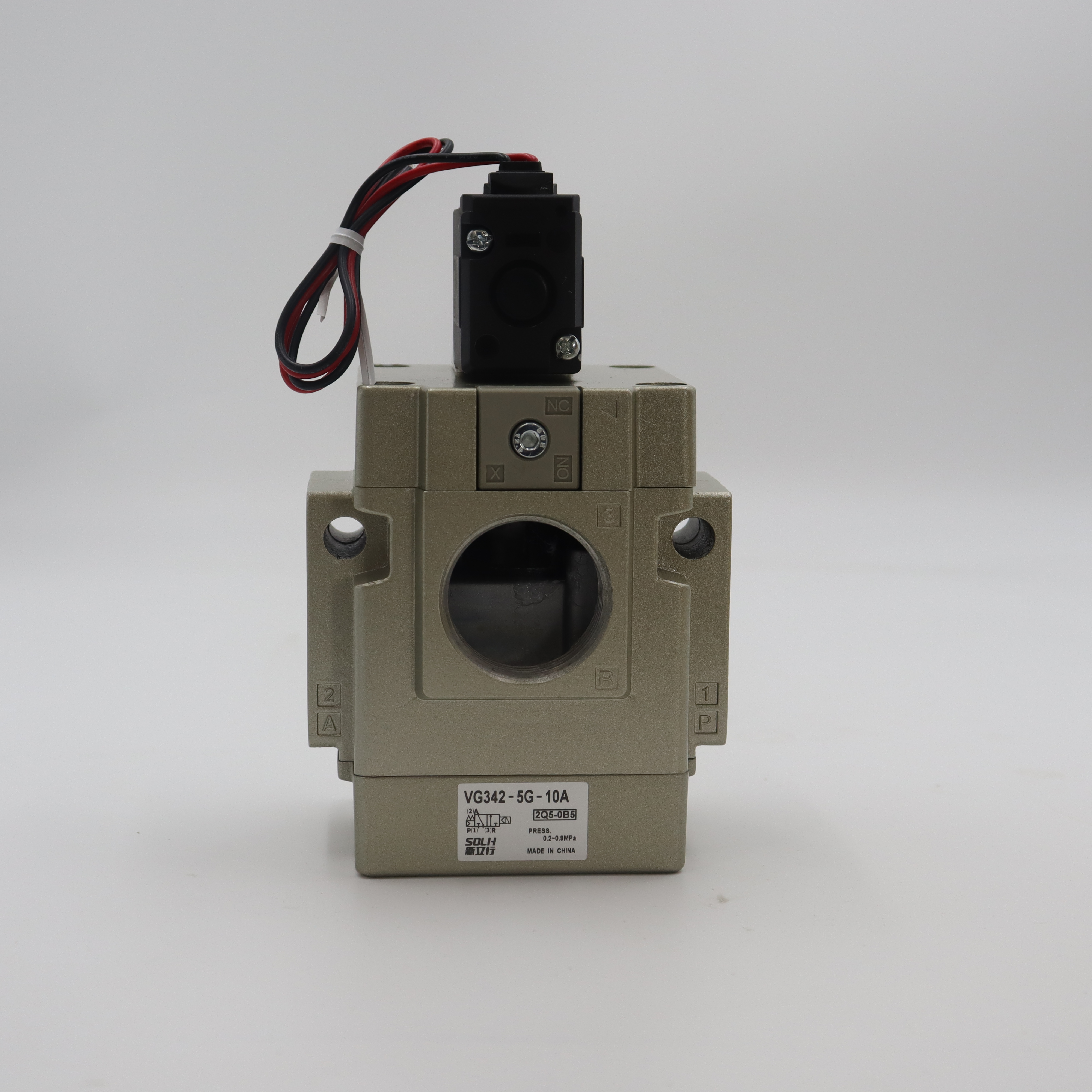

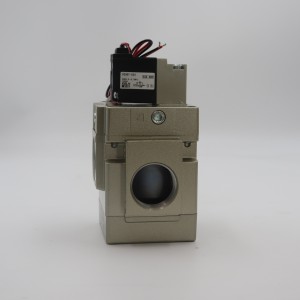

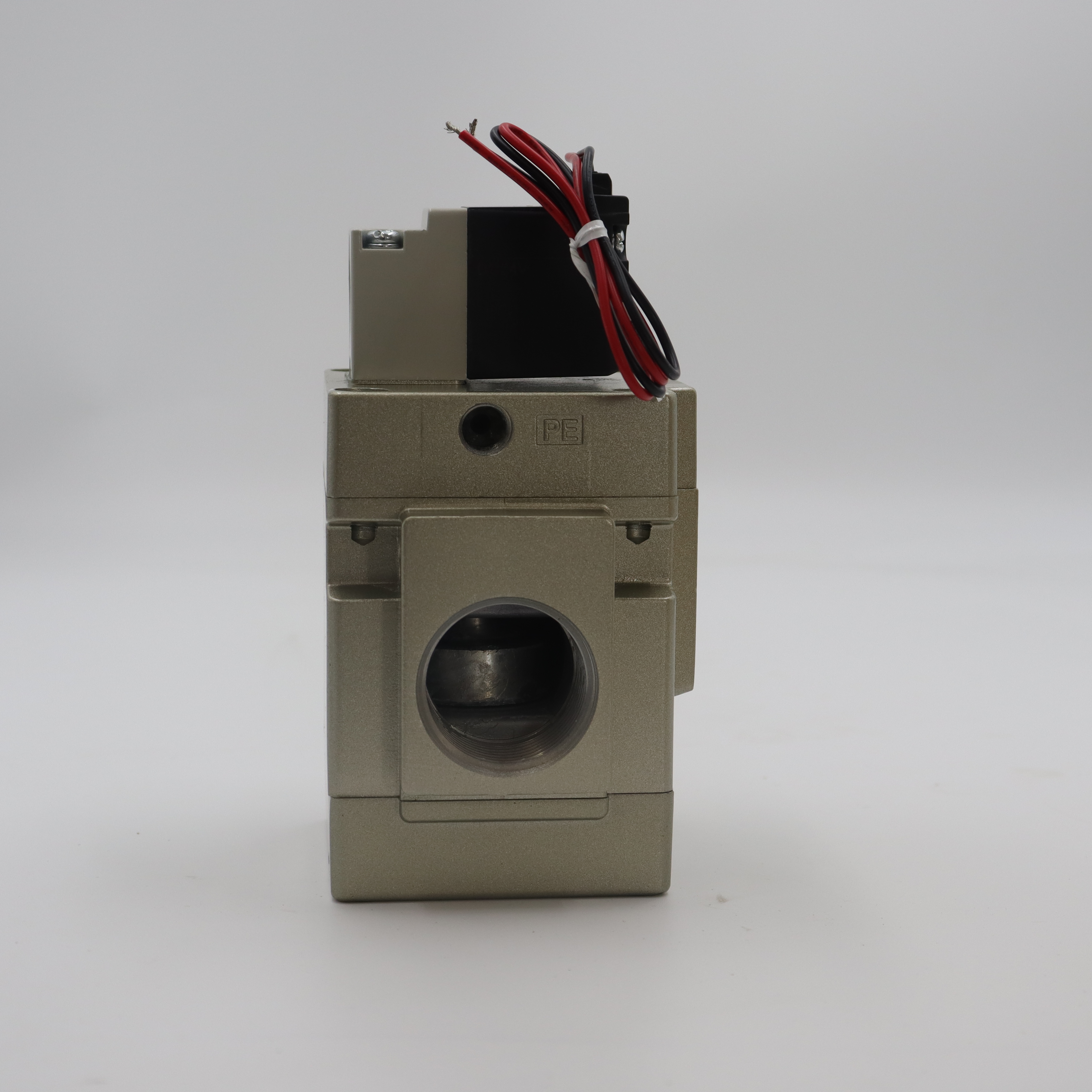

Reliable solenoid valve Vg342-5g-10A Pilot Valve Seat for Fluid Management

Structure type: Two position three-way (three-way, two position) external pilot operated seat valve, driven by pilot air pressure to move the main valve core
Initial state: normally closed (N.C.), the valve automatically closes when power is cut off
Sealing method: Elastic sealing structure, no need for additional oil maintenance
Operation mode: Electromagnetic control combined with manual emergency operation (non locking push type), supporting vacuum or low-pressure environment applications
Compatibility: Can directly use non lubricated compressed air, reducing maintenance requirements; Dustproof design reduces the risk of foreign object intrusion
Pneumatic control: used for industrial equipment such as laminating machines, cylinder direction switching, and speed adjustment.
Vacuum system: adapted to the vacuum generator circuit to achieve control of workpiece adsorption or release.
Industrial Automation: Air Path Management for Production Line Sorting Machinery, Assembly Systems, etc
