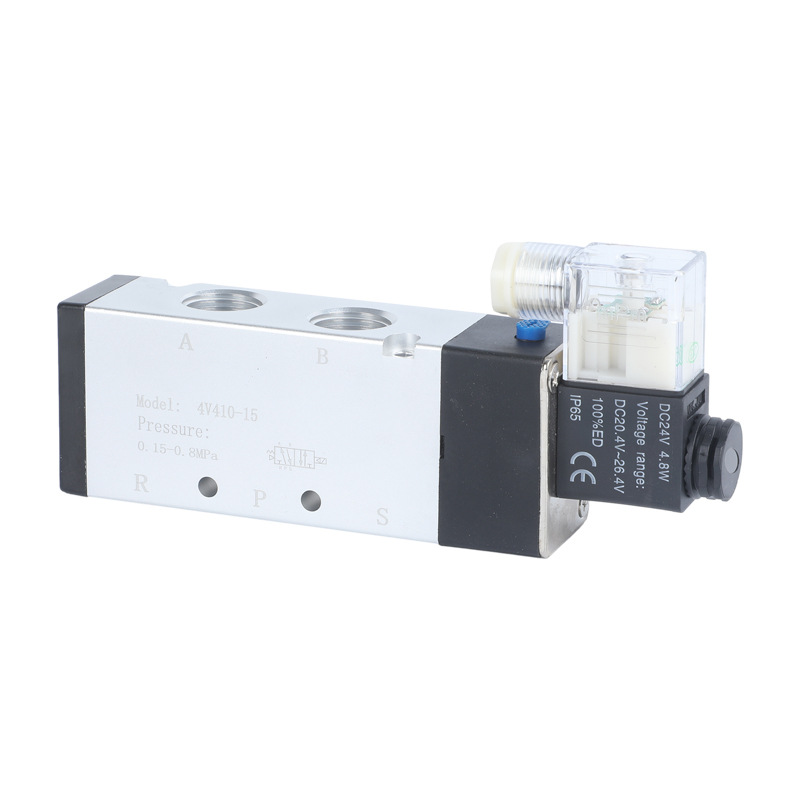

Pneumatic Solenoid Valve Control Component (4V410-15 AC220V DC24)

The 4V410- 15 is a pneumatic solenoid valve commonly used in automation equipment, mainly for functions such as air – direction control and circuit switching. Here is a detailed introduction:

• Basic Type and Function3: It is a two – position five – port solenoid valve, which can realize the control of the air flow direction, and is often used as a pneumatic switch in automation equipment.
• Working Medium1: Usually, it is compressed air, and the air needs to be filtered by a 40μm or finer filter.
• Actuation Mode1: It is mainly of internal pilot type, which uses the pressure of the working medium itself to drive the spool to move, so as to realize the on – off and direction change of the pipeline.
• Connection Port Size1: The inlet, outlet, and exhaust ports all have a diameter of 1/2″, and the connection thread can be G – thread or PT – thread, and NPT – thread is also available in some products.

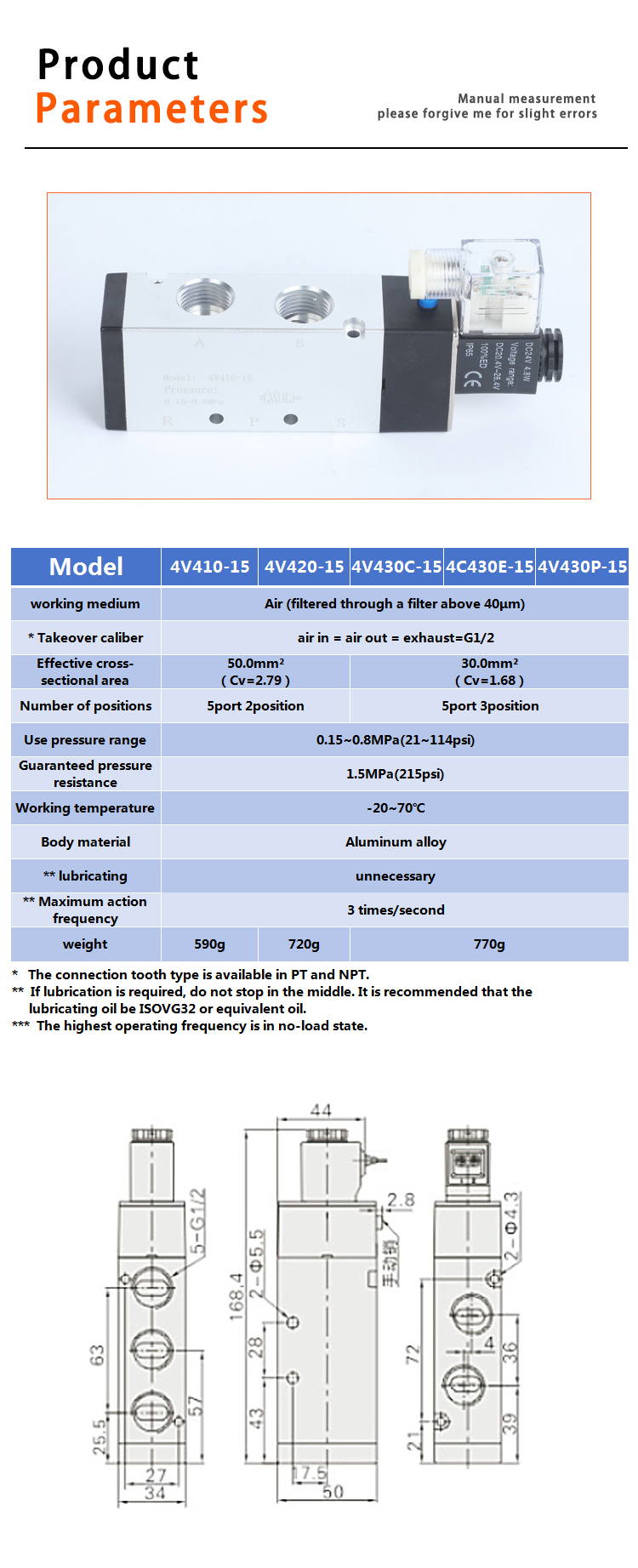

• Main Technical Parameters1
  • Working Pressure Range: Generally, it is 0.15 – 0.8MPa, and the guaranteed pressure – bearing capacity can reach 1.2MPa.
  • Working Temperature Range: Usually, it is between – 5℃ and 50℃, and some products can reach – 20℃ – 70℃.
  • Effective Cross – sectional Area: About 50.0mm², and the corresponding Cv value is 2.79.
  • Maximum Action Frequency: It can reach 3 times per second under no – load conditions, and some products can be as high as 7 times per second.
