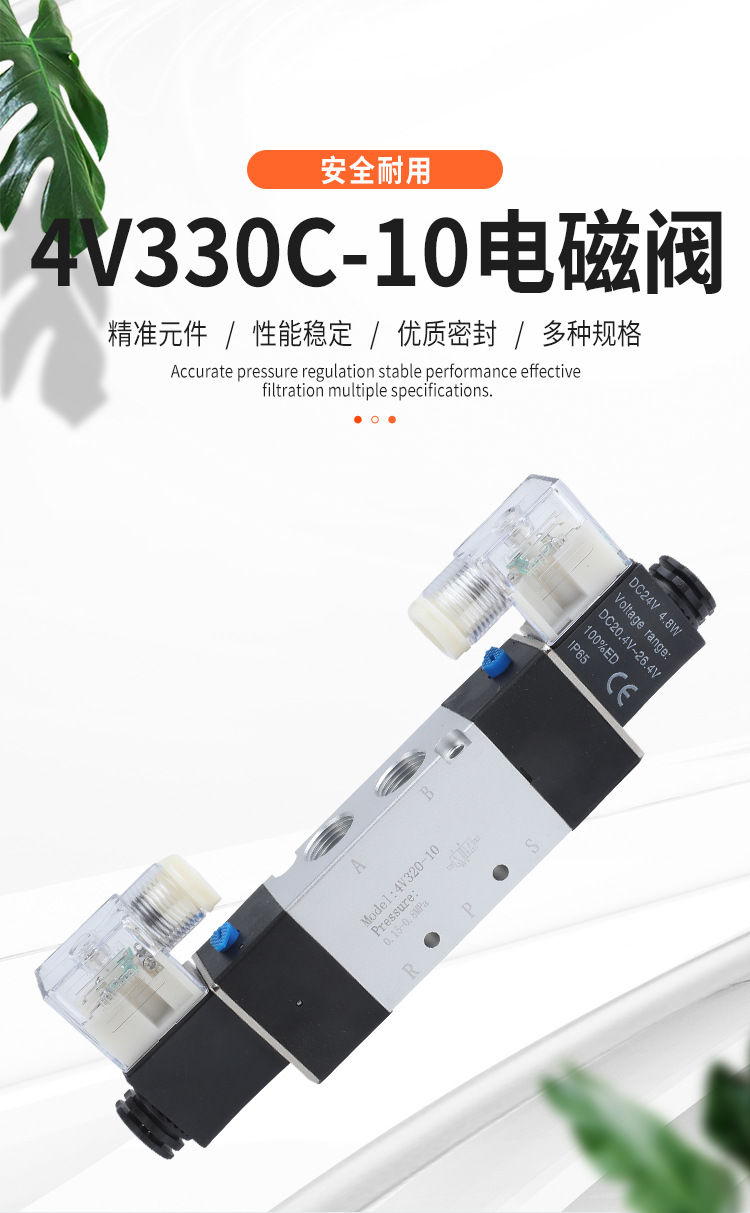

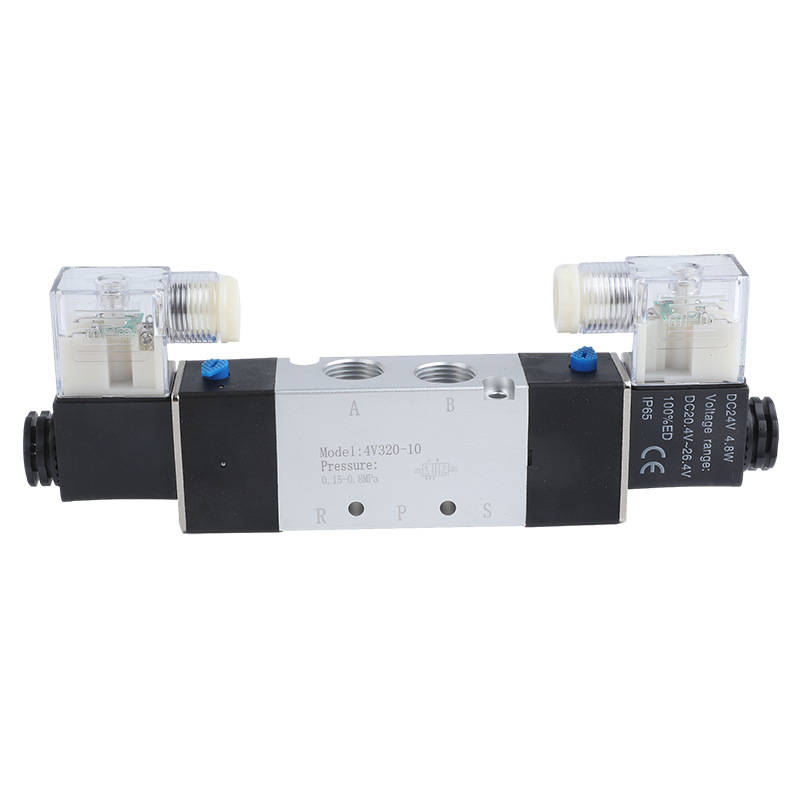

Pneumatic Solenoid Valve Control Component (4V330C-10)
Short Description:
The 4V330 – 10 is a solenoid valve, often produced by brands such as AIRTAC, and is widely used in the field of pneumatic control.

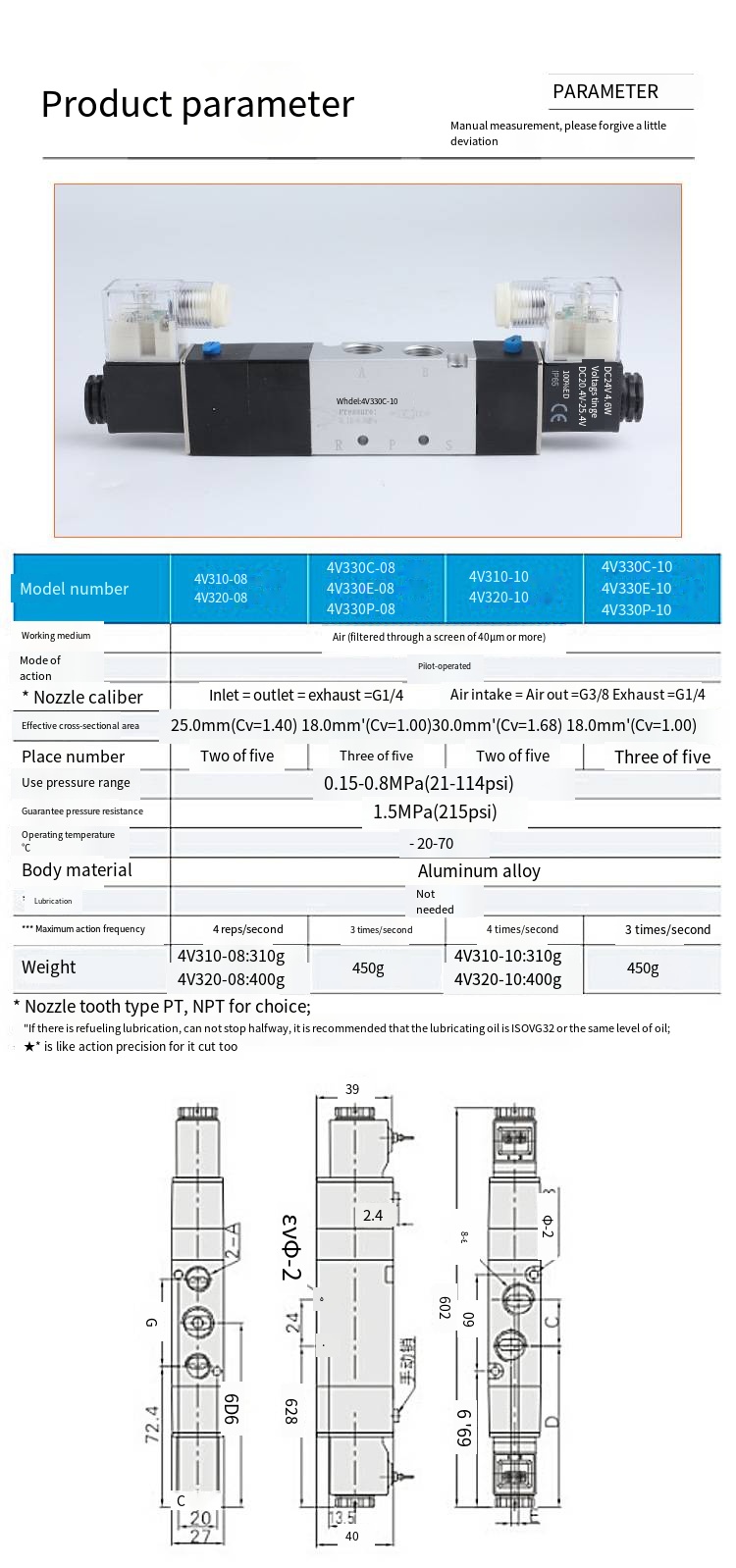

Basic Parameters4
Port Size: The port size of 4V330 – 10 is 3/8″, which is suitable for connecting to corresponding pneumatic pipelines.
Way and Position: It is usually a two – position five – port or three – position five – port solenoid valve. The two – position five – port type can control the air flow direction to realize the forward and reverse movement of the actuating mechanism, etc.; the three – position five – port type has three central functions, which can provide more control modes.
Effective Cross – sectional Area: The effective cross – sectional area is about 30mm², and the Cv value is 1.68, which can ensure a certain air flow and meet the needs of different working conditions.
Working Conditions
Working Medium4: Usually, it is filtered air with a filtration accuracy of 40 microns, which can prevent impurities from entering the valve body and affecting its normal operation.
Working Pressure Range: The working pressure range is generally 0.15 – 0.8MPa, and the maximum pressure – bearing capacity can reach 1.2MPa, which can adapt to different pneumatic systems with different pressure requirements.
Working Temperature Range4: The working temperature range is usually – 5℃ – 50℃, and some products can reach – 20℃ – 70℃, which can meet the application requirements in general industrial environments.
