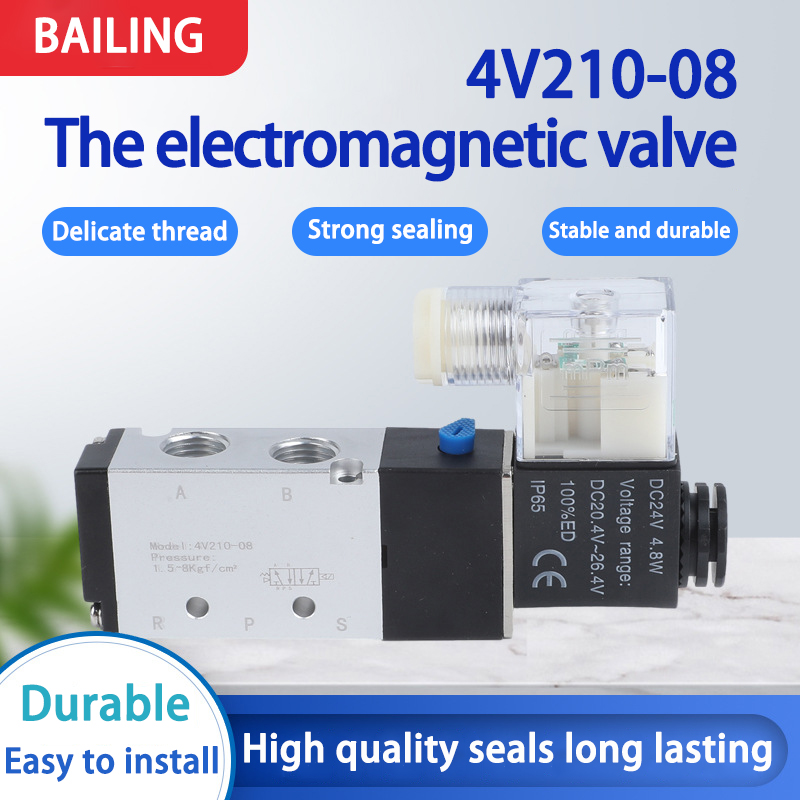

1、 Product Overview
The 4V210-08 solenoid valve is a widely used two position five way (5/2) electromagnetic directional valve in the field of industrial automation control, mainly used to control the direction of motion of pneumatic actuators such as cylinders, pneumatic motors, etc. This valve adopts electromagnetic drive mode and has the characteristics of fast response, long service life, and high stability. It is suitable for various industrial scenarios such as automated production lines, mechanical processing, packaging equipment, and automobile manufacturing.
2、 Product Usage
The 4V210-08 solenoid valve is mainly used in the following application scenarios:
Automated production line: Control the reciprocating motion of cylinders to achieve actions such as workpiece clamping, pushing, sorting, etc.
Packaging machinery: used for pneumatic control of sealing, labeling, filling and other processes.
Machine tool equipment: Drive fixtures, tool repositioning and other mechanisms to improve machining efficiency.
Automotive manufacturing: pneumatic actuator control applied in welding, assembly, spraying and other processes.
Other industrial fields, such as food processing, electronic manufacturing, logistics and transportation, require pneumatic control.
3、 Product advantages
Quick response: Equipped with high-performance electromagnetic coils, fast switching speed ensures precise control.
Long life design: The valve core and seals are made of high-quality materials that are wear-resistant, corrosion-resistant, and have a long service life.
Low power consumption: energy-saving electromagnetic coil, reduces energy consumption, suitable for long-term continuous operation.
High compatibility: Standard interface design, easy to install and replace, compatible with various pneumatic systems.
Stable and reliable: optimized internal structure, strong anti pollution ability, adaptable to harsh industrial environments.
Multiple voltage options: Supports multiple voltage specifications such as DC12V, DC24V, AC110V, AC220V, etc., to meet different needs.
4、 Product Structure
The 4V210-08 solenoid valve is mainly composed of the following parts:
Electromagnetic coil: After being powered on, it generates a magnetic field that drives the valve core to move and achieve gas path switching.
Valve body: Made of high-strength engineering plastic or metal material to ensure stable structure.
Valve core components: precision machining to ensure airtightness and reduce leakage.
Inlet (P): Connect the air source to provide compressed air input.
Working ports (A, B): Connect cylinders or actuators to control their direction of movement.
Exhaust port (R, S): used to exhaust residual gas in the cylinder, ensuring smooth operation.
Manual button (optional): Some models are equipped with manual operation function for easy debugging and maintenance.
5、 Installation and maintenance
Installation precautions:
Ensure the air source is clean and prevent impurities from entering the valve body.
Connect the air circuit in the direction of the arrow on the valve body to avoid reverse installation.
The solenoid valve should be installed in a dry and well ventilated location, avoiding high temperature or humid environments.
Maintenance suggestion:
Regularly check the sealing of the solenoid valve to prevent air leakage.
Clean the filter to prevent dust from blocking the air path.
If abnormal operation of the solenoid valve is found, the coil should be checked or the valve core component should be replaced in a timely manner.
6、 Summary
The 4V210-08 solenoid valve has become an important component in industrial automation control due to its high efficiency, stability, and durability. Whether it’s improving production efficiency or optimizing pneumatic system performance, this solenoid valve can provide a reliable solution. Choosing the appropriate 4V210-08 solenoid valve can effectively improve the operational stability and service life of the equipment, reduce maintenance costs, and is an ideal choice in the field of modern industrial automation.
