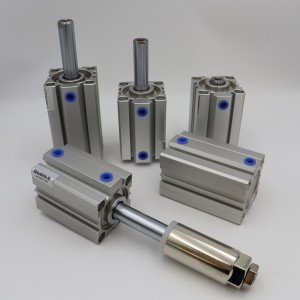

The working principle of a standard cylinder: The cylinder is divided into a rod chamber and a rodless chamber by the piston. When compressed air is input from the rodless chamber, the rod chamber exhausts. The pressure difference between the two chambers of the cylinder acts on the piston, creating a force that overcomes the resistance load and pushes the piston to move, causing the piston rod to extend; When there is rod chamber intake and no rod chamber exhaust, retract the piston rod. If there is an alternating intake and exhaust between rod chambers and rodless chambers, the piston achieves reciprocating linear motion. Classification of standard cylinders: SE series standard cylinders, SI series standard cylinders, SG series standard cylinders, SU series standard cylinders, SC series standard cylinders, JS series standard cylinders.
Post time: Jul-02-2025
